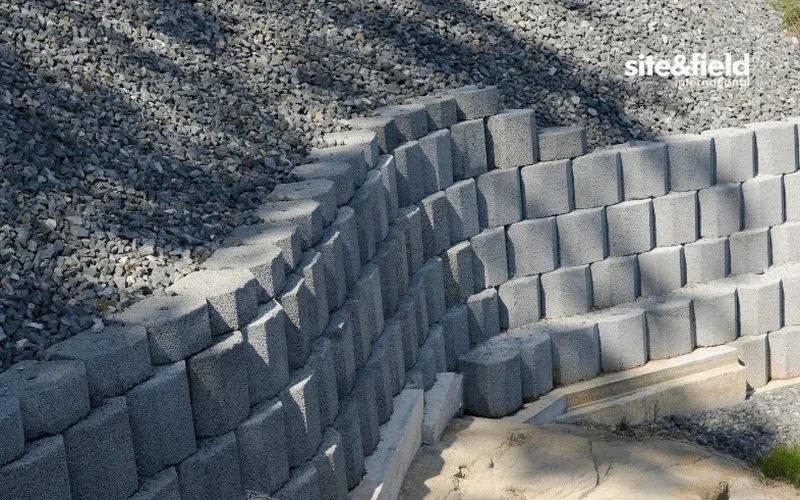

Retaining Wall Design in Sunnyvale: Engineering for Bay Area Soils

In Sunnyvale, we often see retaining walls built on a wish and a prayer, only to crack within two dry seasons. The culprit is rarely the concrete. It is the soil. Sunnyvale sits on deep alluvial deposits with pockets of compressible Bay mud, particularly east of Wolfe Road toward Moffett Field. A retaining wall design here must account for saturated backfill and the relentless lateral pressure it generates. The difference between a wall that lasts thirty years and one that leans in three comes down to the geotechnical investigation. We combine our knowledge of local stratigraphy with a seismic refraction survey to map bedrock depth before any footing is excavated. For taller walls, understanding the shear strength profile is non-negotiable, which is why we integrate data from a CPT test to refine the bearing capacity calculations.

A retaining wall fails from the bottom up, not the top down. In Sunnyvale's soft clays, the base of the wall is the most critical design variable.

Methodology and scope

The soil contrast across Sunnyvale is stark. West of El Camino Real, you encounter stiff Pleistocene alluvium that drains reasonably well. East of Mathilda Avenue, you find the younger, softer estuarine clays that define the Santa Clara Valley floor. A retaining wall design in the western neighborhoods might rely on well-graded backfill and a standard cantilevered section. A wall east of Fair Oaks Park demands a completely different philosophy—underdrains, weep holes, and often a deeper key to resist sliding. We have designed gravity walls, cantilevered reinforced concrete walls, and segmental block walls across this spectrum. The key is always the same: match the wall type to the ground truth. We use laboratory grain size analysis to verify the backfill material. If the native soil has more than 15 percent fines, we redesign the drainage layer. Simple rule, huge impact on the long-term performance.

Site-specific factors

Sunnyvale is in Seismic Design Category D. That is not a bureaucratic label—it means the ground acceleration during a major event on the San Andreas or Hayward fault can liquefy loose sandy lenses trapped beneath clay layers. A retaining wall design that ignores this will rotate outward when the backfill loses its shear strength. We have investigated failed walls in the city where the base had translated two inches within the first rainy season after construction. The root cause was always the same: no key, no filter fabric, and no recognition of the perched groundwater that appears at eight feet depth across much of the 94087 zip code. Water is the enemy of every retaining structure. Our designs include a continuous drainage blanket and a positive slope away from the wall crest. These details cost little during construction but save tens of thousands in remediation.

Technical parameters

Parameter	Typical value
Active earth pressure coefficient (Ka)	0.28 – 0.35 (based on backfill friction angle 30°–35°)
Allowable bearing pressure (Bay mud)	1,500 – 2,500 psf (undrained shear strength dependent)
Allowable bearing pressure (Pleistocene alluvium)	3,500 – 5,000 psf
Seismic design category	D (per ASCE 7-22 and IBC)
Backfill material specification	Free-draining granular, max 5% passing #200 sieve
Typical wall height range designed	3 ft to 22 ft (higher upon specific analysis)
Minimum factor of safety (sliding)	1.5 static / 1.1 seismic

Complementary services

Cantilever and Gravity Wall Design

Full structural and geotechnical design for reinforced concrete and segmental block walls. Includes global stability analysis, bearing capacity checks, and drainage specifications. We deliver stamped calculations and construction-ready plans.

Site Drainage and Backfill Specification

Design of the drainage system behind the wall: granular backfill, filter fabric, perforated pipe, and outlet details. We specify the exact gradation of imported fill to prevent clogging and hydrostatic pressure buildup.

Applicable standards

ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), IBC 2021 (International Building Code, Chapter 18: Soils and Foundations), ASTM D1586 (Standard Test Method for Standard Penetration Test), ASTM D2487 (Standard Practice for Classification of Soils for Engineering Purposes), Caltrans Standard Specifications (Sections 19 and 51 for Earthwork and Retaining Walls)

Questions and answers

How much does retaining wall design cost in Sunnyvale?

For a typical residential retaining wall design in Sunnyvale, the engineering fee ranges from US$1,070 to US$3,790, depending on wall height, site access, and the number of soil borings required. A 3-foot garden wall is at the lower end. A 12-foot wall requiring a key and global stability analysis falls at the higher end. This includes the geotechnical report, calculations, and stamped drawings.

Do I need a permit for a retaining wall in Sunnyvale?

Yes. The City of Sunnyvale requires a building permit for any retaining wall over 3 feet in height, measured from the bottom of the footing to the top of the wall. Walls supporting a surcharge (like a driveway or slope) require a permit regardless of height. Our stamped retaining wall design package meets the city's submittal requirements.

What soil information do you need before designing a retaining wall?

We need at least one soil boring extending to a depth of 1.5 to 2 times the wall height below the proposed footing. We classify the soil per ASTM D2487, measure groundwater depth, and run laboratory shear strength tests. On sites with soft Bay mud, we often supplement with a CPT test to get a continuous profile of the undrained shear strength.
