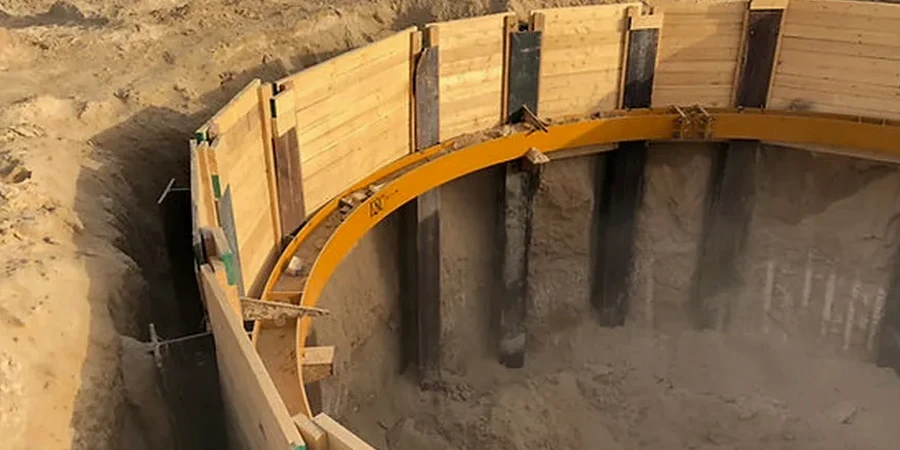

Pile Foundation Design in Sunnyvale: Deep Foundations That Work

After drilling across Sunnyvale for years, one thing stands out. The ground changes fast here. You hit stiff alluvium in one spot and soft bay mud three blocks over. These transitions show up clearly near the Moffett Park area and along the Stevens Creek corridor. A standard shallow foundation won’t cut it when the upper layers are compressible and the water table sits barely six feet down. That’s where pile foundation design becomes the backbone of the project. We connect what the subsurface tells us with a structural solution that transfers loads past the weak stuff. Load testing data from the South Bay confirms that end-bearing piles socketed into the deeper Pleistocene gravels perform reliably, but only when the design accounts for downdrag from the settling clays above. Before committing to a pile layout, many projects benefit from a CPT test to map the stratigraphy continuously. Where shallow exploration is enough to rule out deep foundations, we also run test pits to evaluate near-surface bearing capacity.

In Sunnyvale, ignoring the bay mud's consolidation settlement can turn a well-driven pile into a liability within five years.

Methodology and scope

The pile foundation design process starts with the rig. In Sunnyvale we mostly see diesel hammers and hydraulic push systems adapted for the tight access common in infill lots south of El Camino Real. The design must account for driving stresses through the Young Bay Mud, which can exceed 30 feet thick in some pockets, before reaching competent bearing strata. We specify pile diameters from 12 to 24 inches depending on the structural load and the seismic demand. Seismic performance is non-negotiable here. Sunnyvale sits within a high-seismicity zone, and the 2014 Napa quake reminded every engineer in the Bay Area that soft soil amplifies ground motion. Our designs incorporate the site-specific response spectra required by ASCE 7 Chapter 11. For projects where lateral capacity governs, we model the p-y curves using actual SPT blow counts from the site rather than textbook values. A slope stability analysis often runs in parallel when the structure sits near a creek channel or an engineered fill slope.

Site-specific factors

Sunnyvale grew fast after WWII, and a lot of the industrial land near the 237 corridor was built on engineered fill placed directly over marsh deposits. Over time, those fills settled and the underlying peat decomposed, creating a hidden risk for any new structure. We’ve pulled split spoon samples where the organic content exceeded 15 percent at depths where you’d expect mineral soil. A pile foundation design that ignores this organic layer will underestimate negative skin friction. That downdrag adds a permanent dead load to the pile group, and if the structural slab isn’t designed to span between piles, you get differential settlement that cracks the floor slab within the first two years. Groundwater adds another layer of complexity. The shallow aquifer in the Santa Clara Valley fluctuates seasonally, and a rising water table can reduce effective stress in the bearing layer. We specify a factor of safety of at least 2.5 for end bearing under the IBC, and we verify it with a CAPWAP analysis on the test pile. The city’s building department reviews these calculations closely, so the submittal package must be complete.

Technical parameters

Parameter	Typical value
Typical pile diameter range	12 to 24 inches
Common bearing stratum (Sunnyvale)	Pleistocene gravels / dense alluvium
Design standard (seismic)	ASCE 7-22 Chapter 11 & 12
Soil-structure interaction model	p-y curves (LPILE or similar)
Corrosion protection (steel piles)	Sacrificial thickness per AISC / FHWA
Load test method	High-strain dynamic (PDA) / static
GWL typical depth (Sunnyvale)	5 to 8 feet below grade

Complementary services

Driven Pile Capacity Analysis

We run wave equation analysis using GRLWEAP for the specific hammer and pile combination planned for the site. The analysis predicts driving stresses and final blow counts, which the contractor uses to size the hammer. For Sunnyvale’s dense alluvium, we often specify a minimum tip elevation to guarantee the pile toes out of the bay mud.

Seismic Lateral Load Design

We develop p-y curves from site-specific SPT and CPT data to model the lateral response of each pile under the design earthquake. The analysis checks pile head deflection, bending moment, and shear against the structural capacity of the pile section. Group effects are included when pile spacing is less than six diameters.

Construction Monitoring and Testing

We provide full-time observation during pile installation, logging the blow count, hammer energy, and any refusal conditions. High-strain dynamic testing (PDA) on the first production piles confirms the capacity matches the design assumptions. A signed report goes to the city with the test data and the engineer’s interpretation.

Applicable standards

ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures), IBC 2024 (International Building Code) – Chapter 18, ASTM D1143 (Standard Test Methods for Deep Foundation Elements Under Static Axial Compressive Load), ASTM D3689 (Standard Test Methods for Deep Foundation Elements Under Static Axial Tensile Load), FHWA-NHI-16-009 / 16-010 (Drilled Shaft / Driven Pile manuals), ASTM D4945 (High-Strain Dynamic Testing of Deep Foundations)

Questions and answers

How much does pile foundation design cost for a Sunnyvale project?

The design phase alone typically runs between US$1.550 and US$5.910 for most commercial and residential projects. The range depends on the number of piles, the complexity of the soil profile, and the seismic analysis required. A small addition with six piles costs less than a three-story mixed-use building with a basement.

Why are driven piles preferred over drilled shafts in Sunnyvale?

Driven piles handle the high water table better. When you drill a shaft in Sunnyvale, the hole wants to collapse once you get below the groundwater at 6 feet. Casing helps but adds cost and time. A driven pile displaces the soil, can be installed quickly, and the PDA testing gives you immediate capacity verification without waiting for concrete to cure.

What soil information do you need before starting the pile design?

We need at least one deep boring that extends 20 feet into the bearing stratum. For Sunnyvale sites, that usually means a boring to 60 or 80 feet. The boring should have SPT blow counts every 5 feet and lab classification of the clay layers. A CPT sounding paired with the boring gives us the continuous profile we need for a reliable design.

Does the City of Sunnyvale require a special inspection for pile foundations?

Yes. Chapter 17 of the IBC, adopted by Sunnyvale, requires special inspection for deep foundations. The geotechnical engineer of record or a qualified deputy must observe the pile installation, review the driving logs, and interpret the test results. The special inspector submits a final report to the building official before the foundation permit is closed out.
