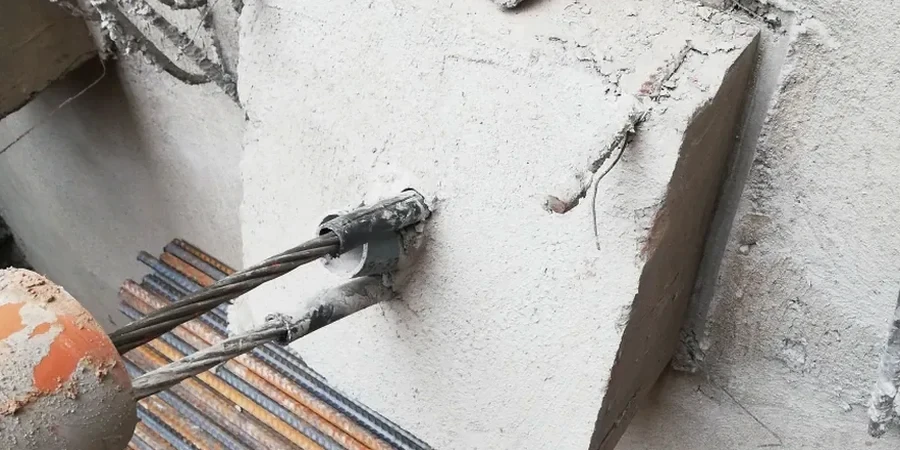

Active and Passive Anchor Design in Sunnyvale: Soil Retention for Silicon Valley Projects

Sunnyvale’s building code follows IBC Chapter 18 and ASCE 7-22, which mandate lateral earth pressure calculations tailored to site-specific soil profiles. In a city built largely on Quaternary alluvial fan deposits drained by Calabazas and Stevens creeks, the difference between active and passive anchor performance isn’t academic—it’s what keeps an excavation open or a basement wall stable. Our anchor design approach starts with that reality. We size the bond length, free length, and tendon grade after direct soil data, not generic assumptions. For projects near the 237 corridor or around Moffett Park, where soft clays and fluctuating groundwater are common, we often pair anchor design with CPT testing to profile undrained shear strength continuously, and with retaining wall analysis when the anchor row is part of a soldier pile or secant wall system.

In Sunnyvale’s stratified alluvium, anchor bond zones must be designed lens by lens—a single average friction value won’t predict pullout.

Methodology and scope

The near-surface geology across Sunnyvale tells a story of interbedded silty clays and sandy lenses—Class D to E sites per ASCE 7 that amplify ground motion. This layering means pullout capacity varies meter by meter. A strand anchor that holds 120 kips in a dense sand lens might slip at 40 kips if the bond zone dips into fat clay. We don’t guess. Our design method uses load-transfer curves calibrated with local lab data: triaxial tests on undisturbed Shelby tube samples and Atterberg limits to confirm plasticity. For active anchors, we calculate the thrust wedge geometry and set the unbonded length behind the critical failure surface. For passive systems, we verify that the reaction block or deadman develops capacity without excessive displacement. When the water table is high—common east of Mathilda Avenue in winter—we factor pore pressure into the effective stress model. A slope stability assessment often runs in parallel when the anchored wall retains a cut near an existing structure, because a global failure through the anchor zone is a risk that no pullout test alone can rule out.

Site-specific factors

North of Highway 101, where Sunnyvale transitions toward the Bay and groundwater sits within 6 feet of grade, anchor installation faces a different reality than the better-drained soils south of El Camino Real. In the northern industrial zone, high plasticity clays can creep under sustained load, reducing prestress over time if the lock-off force isn’t set with that behavior in mind. We address this with staged testing: a short-term proof test to confirm ultimate capacity, followed by a 24-hour creep test for anchors in cohesive soils. The bigger risk, though, is skipping passive anchor analysis altogether. When a contractor assumes a mass concrete deadman will hold without checking passive wedge interference with adjacent utilities, the result can be a slow, expensive excavation collapse. Neither the city inspector nor the geotechnical engineer of record will sign off on that.

Technical parameters

Parameter	Typical value
Anchor types designed	Active (prestressed) and passive (reaction)
Applicable codes	IBC 2024, ASCE 7-22, PTI DC35.1
Tendon grades	ASTM A416 Grade 270 (strand), ASTM A615 Grade 75/80 (bar)
Typical free length	15 to 45 ft depending on wall height
Bond length verification	Load test to 1.33× design load per IBC 1810
Seismic factor	SDS up to 1.50g in eastern Sunnyvale
Corrosion protection	Class I (double encapsulation) or Class II per PTI

Complementary services

Active Anchor System Design

Prestressed strand or bar anchors for excavation support, bridge abutments, and basement walls. Includes bond length calculation in layered soils, free length verification behind the Rankine wedge, lock-off load recommendation, and corrosion protection class selection per PTI standards. Delivered with IBC-compliant load test criteria.

Passive Anchor & Deadman Design

Reaction systems for sheet pile walls, tieback alternatives, and shallow retaining structures. We calculate passive pressure capacity using limit equilibrium methods, check group effects and wedge overlap, and specify proof testing where required. Practical when right-of-way or access prevents drilling beyond property lines.

Applicable standards

IBC 2024 — Chapter 18 Soils and Foundations, ASCE 7-22 — Minimum Design Loads for Buildings, PTI DC35.1 — Recommendations for Prestressed Rock and Soil Anchors, ASTM A416 — Standard Specification for Low-Relaxation Steel Strand, ASTM D1586 — Standard Test Method for SPT and Split-Barrel Sampling

Questions and answers

What’s the difference between active and passive anchors?

Active anchors are tensioned during installation—they apply a prestress force that pulls the wall into the soil, reducing movement. Passive anchors develop resistance only when the wall starts to move and the anchor is loaded. In Sunnyvale’s soft bay clays, we often specify active anchors because waiting for passive resistance to mobilize can mean unacceptable deflection, especially next to existing foundations or sensitive infrastructure.

How long does anchor testing take per anchor?

A standard performance test per PTI DC35.1 runs about 90 minutes for a single anchor, including load-hold cycles up to 133% of design load. Creep tests in cohesive soils add 24 hours. Our team coordinates with the drilling contractor so testing slots don’t idle the crew—we test as soon as the grout reaches minimum compressive strength, typically 3 to 5 days after installation.

What does anchor design cost for a typical Sunnyvale project?

For a single anchored wall, our design and testing specification package runs between US$1,140 and US$3,910 depending on wall height, number of anchor rows, and whether we’re handling both active and passive elements. A two-row anchored wall with 20 anchors per row will fall in the upper half of that range. We quote a fixed scope after reviewing the preliminary wall layout and geotechnical report.
